33 ton Hydraulic Drilling Rig for underground pipe laying project
ADVANTAGES
1, With the use of four-pump hydraulic system ,DL330 drilling
machine has better working efficiency and rational power
distribution .its forced air cooling system enables it to work
reliably for long time.
2, Additionally ,its impact structure and sound climbing capacity
can make transfer and transportion of the equipment more convenient
,High-speed operation system has multi-shift stepless speed
regulation function,signficicantly increasing the operation
efficiency.
3, Operationl force adding mechanism is available to provide
additional force of 33t,and the holder can realize automatic
alignment,and is of national patented product.
4, The drill pipe mounting bracket is used to support the upper and
lower drill pipes, which is a national patent product
5, Auto drill loading mechanism an d automatic anchorage device are
provided.
MAIN TECHNICAL PARAMETERS
| Engine | KW | 153/2200 | Dimension(L*W*H) | MM | 6910*2212*2520 |
| Max.thrust force | KN | 330/660 | Weight | T | 11.8 |
| Max.pullback force | KN | 330/660 | Diameter of drill rod | MM | Φ73 |
| Max.torque | N.m | 13000 | Lendht of drill rod | M | 3 |
| Max.rotary speed | rpm | 120 | Max diameter of pullback pipe | MM | Φ150-Φ180 |
| Max.Moving speed of power head | m/min | 30 | Max pullback pipe length | m | ~150 |
| Max.mud pump flow | L/min | 400 | Incidence Angle | . | 11~20 |
| Max.mud pressure | Mpa | 8±0.5 | climbing Angle | . | 14 |
Main parts:
|
| Name | Manufacture | Standard |
| Engine | KUMMINS | 153KW |
| Pump | PERMCO (USA) DANFOSS(USA) | |
| Valve | China LITE | |
| RotateMotor | SAUER (ITALY) | |
| Pull-back motor | EATON
|

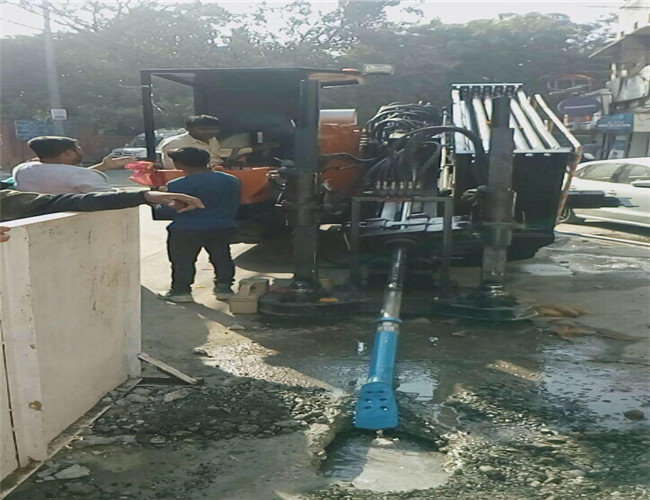

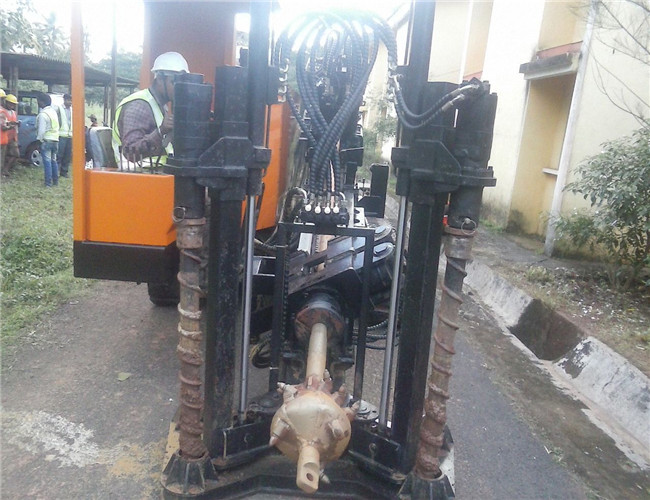

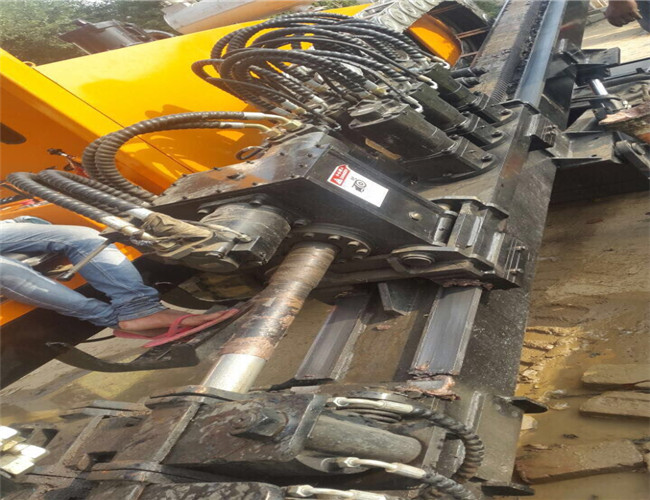

DL330MACHINE WORKS IN INDIA
