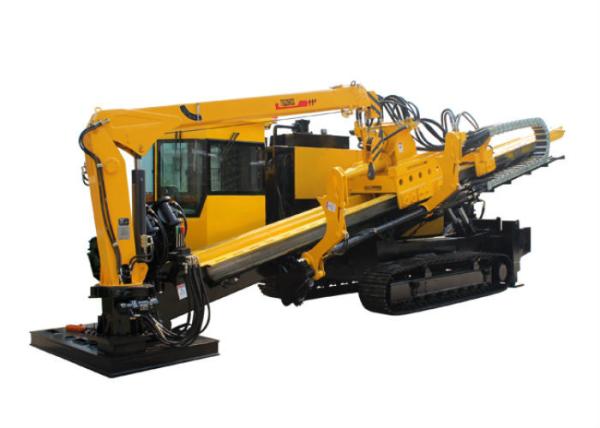

    Earthworm DL1200 Crawler Drilling Rig Main Rotary Hydraulic System Is A Closed Loop

    Ask Lasest Price
    Brand Name : DILONG
    Model Number : DL1200
    Price : NEED DISCUSS
    Delivery Time : After advance payment in 7 days
    Supply Ability : 100 Units PER YEAR
    • Product Details
    • Company Profile

    Earthworm DL1200 Crawler Drilling Rig Main Rotary Hydraulic System Is A Closed Loop

    Machine features
    Earthworm DL1200 rig is an integral type horizontal directional drilling track, the main rotating hydraulic system is a closed loop, so that the machine has higher working efficiency; 264Kw engine power, strong wind cooling system can work reliably for a long time even in the hot area; compact structure and excellent ability to grasp the slope, transit and transport the equipment is more convenient; the use of multi gear stepless speed regulation, in different work conditions can make efficient use of the rig, greatly improving the work efficiency.
    technical parameter
    Characteristic
    parameter
    Company
    Engine power
    KW
    264/2200
    Maximum jacking force
    KN
    Five hundred and fifty
    Maximum towing force
    KN
    One thousand three hundred and twenty
    Maximum torque
    N.M
    Thirty-five thousand
    Power head speed
    RPM
    One hundred
    Power head travel speed
    M/min
    Thirty
    Drill pipe length
    M
    Four point five
    drill pipe diameter
    Mm
    Phi 114
    Incident angle
    DEG
    From 8 to 18
    Climbing angle
    DEG
    Fourteen
    Host size
    Mm
    10559*2630*3315
    Host weight
    T
    Twenty-three
    Mud pump flow
    L/min
    Eight hundred
