Brand Name : | DILONG |
Model Number : | DL80 |
Certification : | ISO 9001 |
Price : | NEED DISCUSS |
Payment Terms : | L/C, D/A, D/P, T/T |
Supply Ability : | 100 Units PER YEAR |
Delivery Time : | After advance payment in 7 days |

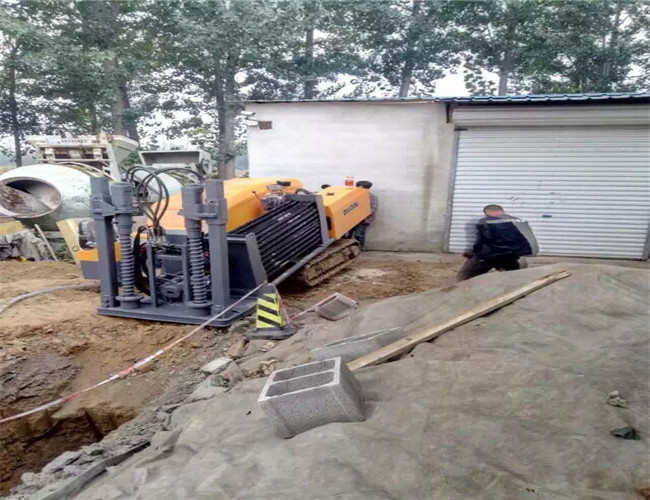

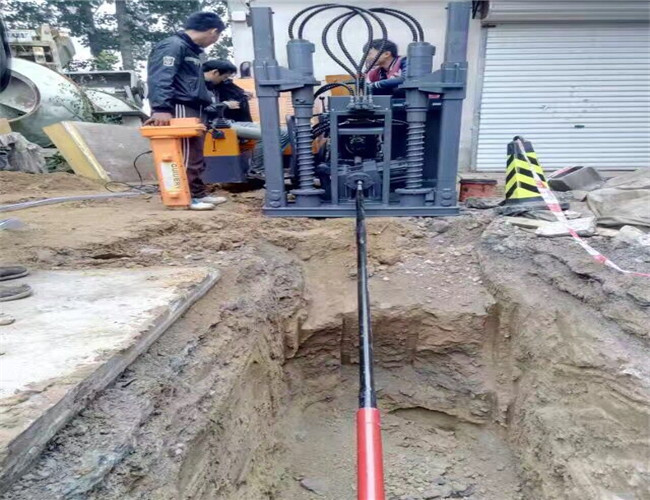

8T Heavy Duty Directional Drilling Equipment For Sale , Underground Boring Equipment
With the use of four-pump hydraulic system (open constant-power system),DL80 crawler integrated hrizontal directional drilling machine has better working efficiency ,and it has 47.3Kw engine .its forced air cooling system enables it to work reliably for long time. Additionally ,its impact structure and sound climbing capacity can make transfer and transportion of the equipment more convenient ,High-speed operation system has multi-shift stepless speed regulation function,signficicantly increasing the operation efficiency.
Engine | KW | 47.3/2200 | Dimension(L*W*H) | MM | 4000*1597*2220 |
Max.thrust force | KN | 80 | Weight | T | 4.2 |
Max.pullback force | KN | 80 | Diameter of drill rod | MM | Φ42 |
Max.torque | N.m | 2200 | Lendht of drill rod | M | 1.5 |
Max.rotary speed | rpm | 190 | Max diameter of pullback pipe | MM | Φ200-Φ500 |
Max.Moving speed of power head | m/min | 33 | Max pullback pipe length | m | ~80 |
Max.mud pump flow | L/min | 40 | Incidence Angle | . | 8~20 |
Max.mud pressure | Mpa | 3.5±0.5 | climbing Angle | . | 14 |
Whatsapp number:008618936869890
HDD MACHINE, NO DIG MACHINE, DRILLING MACHINE
![]() |
