    45 TON Horizontal Directional Drilling Rig Double Cylinder Push Pull System DILONG MACHINERY

    Ask Lasest Price
    Brand Name : DL
    Model Number : DL450C
    Price : NEED DISCUSS
    Delivery Time : After advance payment in 7 days
    Supply Ability : 100 Units PER YEAR
    Certification : ISO9001
    • Product Details
    • Company Profile

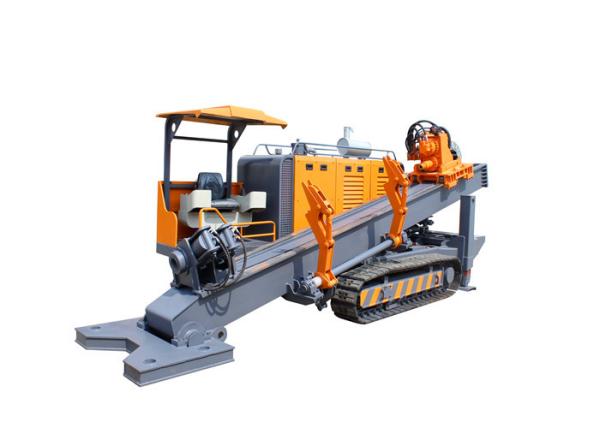

    45 TON Horizontal Directional Drilling Rig Double Cylinder Push Pull System DILONG MACHINERY

    45 TON DL450C drilling rig double cylinder push pull system DILONG MACHINERY


    Machine features


    1. France pocland rotation motor, most high efficiency.

    2. High reliability

    3. Best durability

    4. Best failure delay

    5. Best system security

    6. Lower maintenance cost

    7. Higher working efficiency

    8. Higher practical push pull force

    9. Best starting capacity

    10. Lower sensitivity of hydraulic oil and temperature

    11. Best ability of overload working

    12. Best stationarity of push pull

    13. Suitable for closed hydraulic system


    Specification:


    Engine PowerKW194/2200Main machine sizemm7400x2300x2485
    Max Thrust forceKN450WeightT11
    Max Pullback forceKN450Diameter of drilling rodmmΦ83
    Max TorqueN.M18000Length of drilling rodm3
    Max Rotary speedrpm140Max diameter of pullback pipemmφ150~φ1000
    Max Moving speed of power headm/min30Max construction lengthm~600
    Max Mud pump flowL/min450Incidence Angle°12~25
    Max Mud pressureMpa8±0.5Climing Angle°14

    Main parts:

    NameManufactureStandardQuantity
    EngineCUMMINS (CHINA)194KW1
    Pump

    PERMCO (USA)

    SAUER

    1

    1

    ValveLiTe (China)
    Hyraulic MotorPOCLAN (FRANCE)2
    Mud PumpHengTan(China)BW-4501

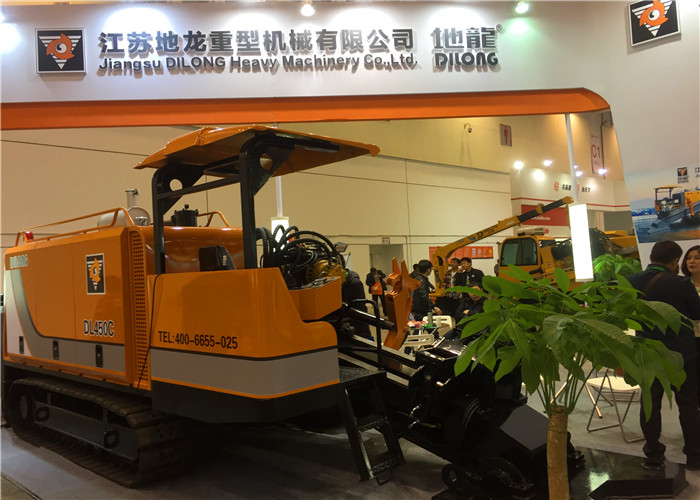

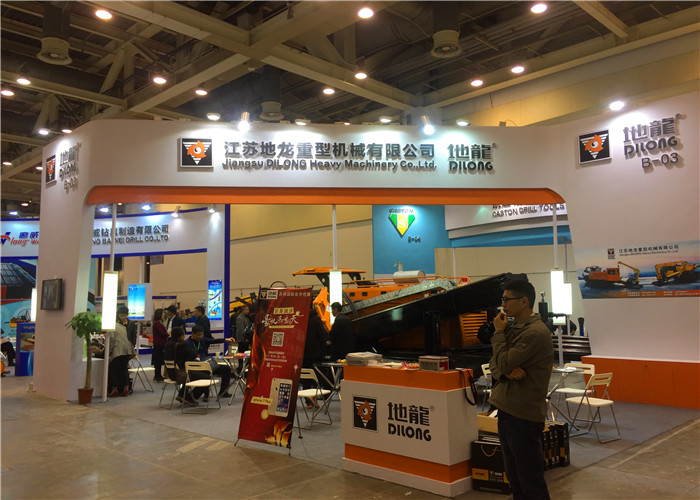

    Exhibation:
