Brand Name : | DILONG |
Model Number : | DL200A |
Price : | NEED DISCUSS |
Payment Terms : | D/P, D/A, L/C, T/T |
Supply Ability : | 100 Units PER YEAR |
Delivery Time : | After advance payment in 7 days |
20T Auto Loading / Anhoring Hdd Drilling Equipment / Road Boring Machine For Sale
ADVANTAGES
1, With the use of four-pump hydraulic system ,DL200 drilling machine has better working efficiency and rational power distribution .
2, Its forced air cooling system enables it to work reliably for long time.
3, Additionally ,its impact structure and sound climbing capacity can make transfer and transportion of the equipment more convenient ,High-speed operation system has multi-shift stepless speed regulation function,signficicantly increasing the operation efficiency.
MAIN TECHNICAL PARAMETERS
Engine | KW | 110/2200 | Dimension(L*W*H) | MM | 6400*2150*2350 |
Max.thrust force | KN | 200 | Weight | T | 7.5 |
Max.pullback force | KN | 200 | Diameter of drill rod | MM | Φ60 |
Max.torque | N.m | 5900 | Lendht of drill rod | M | 3 |
Max.rotary speed | rpm | 180 | Max diameter of pullback pipe | MM | Φ150-Φ700 |
Max.Moving speed of power head | m/min | 30 | Max pullback pipe length | m | ~300 |
Max.mud pump flow | L/min | 240 | Incidence Angle | . | 10~22 |
Max.mud pressure | Mpa | 7±0.5 | climbing Angle | . | 14 |

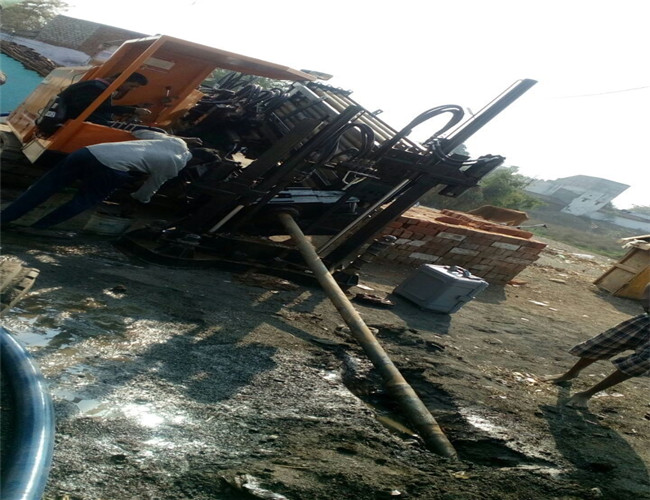

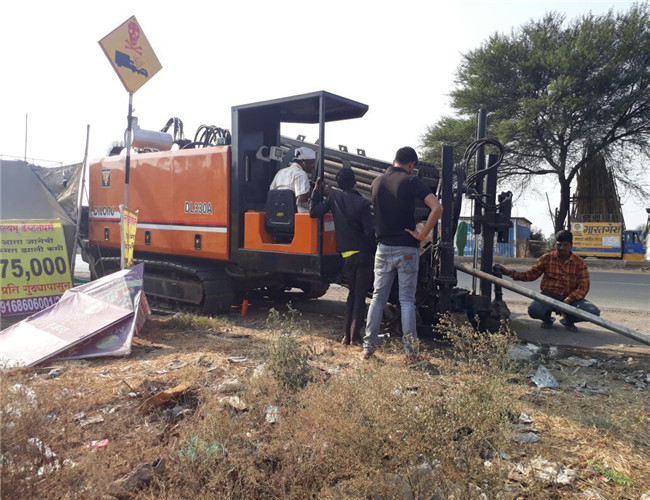

MACHINE WORKS IN INDIA
![]() |
