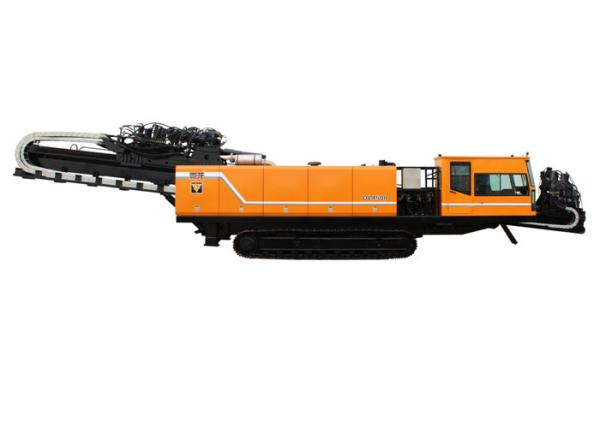

450 Ton HDD Drilling Machine Track Closed Loop Hydraulic System
Machine features
1, With the use of closed loop of tha main hydraulic system,DL4500 crawler integrated horizontal
directional drilling machine has better working efficiency
2, It has advanced automatic control system enabling more rational power distribution of the engine
3, Its forced air cooling system enables it to work reliably for a long time .
4, Its impact structure and sound climbing capacity can make transfer and transfer and transportation of the equipment more convenient.
Specification:
Engine | kw | 559/1800 | Dimension(L*W*H) | mm | 18820*3965*3500 |
Max.thrust force | KN | 4500 | Weight | T | 60 |
Max.pullback force | KN | 4500 | Diameter of drill rod | mm | Φ140 |
Max.torque | N.m | 120000 | Lendht of drill rod | m | 9.6 |
Max.Rotary speed | rpm | 70 | Max diameter of pullback pipe | mm | Φ1600 |
Max.Moving speed of power head | m/min | 30 | Incidence angle | . | 9~15 |
Max.mud puump flow | L/min | Climbing angle | . | ~14 | |
Max.mud pressure | Mpa | 10±0.5 | Max pullback pipe length | m | ~2000 |
